| CPU |
Intel® for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Build in Intel® B85 |
| Memori |
4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Grafis |
Integrated Graphics Processor Dukungan output Multi-VGA : HDMI/DVI/RGB port - Mendukung DVI dengan resolusi maks. 1920 x 1200 @ 60 Hz - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Mendukung RGB dengan resolusi maks. 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 3 displays simultaneously |
| Dukungan Multi-GPU | Supports AMD Quad-GPU CrossFireX™ Technology |
| Slot Ekspansi |
1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 1 x PCIe 2.0 x16 (x4 mode, black) 2 x PCIe 2.0 x1 3 x PCI |
| Storage |
Intel® B85 chipset : *1 4 x SATA 6Gb/s port(s), gray 2 x SATA 3Gb/s port(s), black Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology |
| LAN | Intel® I217V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST II |
| Audio |
SupremeFX 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 115 dB SNR stereo playback output - High-fidelity audio OP AMP(s) Audio Feature : - SupremeFX Shielding™ Technology - ELNA premium audio capacitors - Sonic Radar - Optical S/PDIF out port(s) at back panel |
| Port USB |
Intel® B85 chipset : 4 x USB 3.0/2.0 port(s) (2 at back panel, , 2 at mid-board) Intel® B85 chipset : 8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board) |
| Fitur-Fitur Overclocking | GameFirst II |
| Fitur-Fitur Khusus |
ASUS Dual Intelligent Processors 2 with DIGI+ VRM : - The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - 10K Black Metallic Capacitors - Stainless Steel Back I/O - DIGI+ VRM ASUS TPU : - Auto Tuning - TurboV - GPU Boost without switch ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.0 Boost - Disk Unlocker |

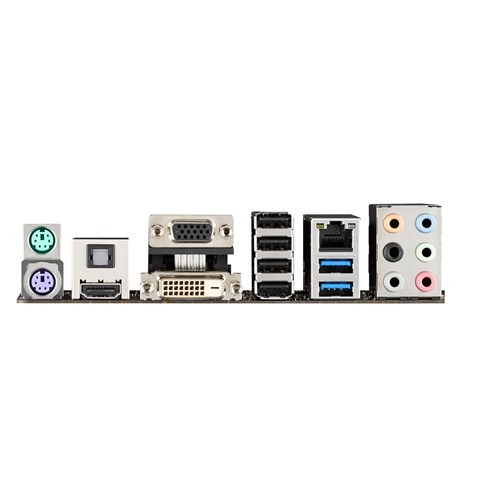

| Port I/O Belakang |
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.0 4 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) |
| I/O Internal |
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM connector(s) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 3 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) |
| Aksesori |
User's manual ASUS Q-Shield 2 x SATA 6Gb/s cable(s) |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0a, Multi-language BIOS,ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Kemampuan Manajemen | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| Disc Pendukung |
Drivers ASUS Utilities EZ Update Anti-virus software (OEM version |
| Sistem Operasi |
Windows® 8.1 32/64-bit Windows® 8 32/64-bit Windows® 7 32/64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9 inch ( 30.5 cm x 22.8 cm ) |
