| CPU |
Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package |
| Supports Intel® Turbo Boost 2.0 Technology | |
| Supports Intel® K-Series CPU | |
| Supports Hyper-Threading Technology | |
| Chipset | Intel® H61 |
| Supports Intel® Rapid Start Technology and Smart Connect Technology | |
| *Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions. | |
| Memory | - Dual Channel DDR3 memory technology |
| - 2 x DDR3 DIMM slots | |
| - Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory | |
| - Max. capacity of system memory: 16GB* | |
| - Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 with Intel® Ivy Bridge CPU | |
|
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
|
|
**The highest supported DRAM frequency depends on the CPU you've installed. For detailed CPU specifications, please refer to Intel® official website. |
|
| BIOS | - 32Mb AMI UEFI Legal BIOS with GUI support |
| - Supports "Plug and Play" | |
| - ACPI 1.1 Compliance Wake Up Events | |
| - Supports jumperfree | |
| - SMBIOS 2.3.1 Support | |
| Audio, Video and Networking | |
| Graphics |
Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel®Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU |
|
Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU |
|
|
Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel®Sandy Bridge CPU. |
|
|
Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel®Sandy Bridge CPU. |
|
| Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz | |
|
*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
|
| **Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64. | |
| Audio | 5.1 CH HD Audio (Realtek ALC662 Audio Codec) |
| LAN | - Realtek PCIE x1 LAN 8105E |
| - Speed: 10/100 Ethernet | |
| - Supports PXE | |
| Expansion / Connectivity | |
| Slots | - 1 x PCI Express 3.0 x16 slot (blue @ x16 mode) |
| - 1 x PCI Express 2.0 x1 slot | |
| *PCIe Gen3 is supported on 3rd Generation of Intel® Core™ i5 and Core™ i7 CPUs. | |
| Connector | - 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions |
| - 1 x Power LED header | |
| - 1 x Chassis Intrusion header | |
| - 1 x CPU Fan connectors (4-pin) | |
| - 1 x Chassis Fan connector (3-pin) | |
| - 24 pin ATX power connector | |
| - 4 pin 12V power connector | |
| - Front panel audio connector | |
| - 2 x USB 2.0 headers (support 4 USB 2.0 ports) | |

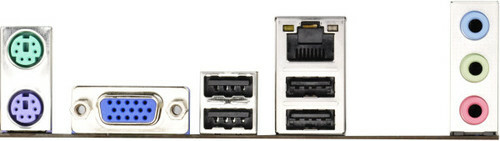

| Rear Panel I/O | I/O Panel |
| - 1 x PS/2 Mouse Port | |
| - 1 x PS/2 Keyboard Port | |
| - 1 x D-Sub Port | |
| - 4 x Ready-to-Use USB 2.0 Ports | |
| - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| - HD Audio Jack: Line in / Front Speaker / Microphone | |
| Other Features / Miscellaneous | |
| Unique Feature | - ASRock Extreme Tuning Utility (AXTU) |
| - ASRock Instant Boot | |
| - ASRock Instant Flash | |
| - ASRock APP Charger | |
| - ASRock XFast USB | |
| - ASRock XFast LAN | |
| - ASRock XFast RAM | |
| - ASRock Crashless BIOS | |
| - ASRock OMG (Online Management Guard) | |
| - ASRock Internet Flash | |
| - ASRock Dehumidifier Function | |
| - ASRock Fast Boot | |
| - ASRock Restart to UEFI | |
| Hybrid Booster | |
| - ASRock U-COP | |
| - Boot Failure Guard (B.F.G.) | |
| - Good Night LED | |
| Support CD |
Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - Trial, Google Chrome Browser and Toolbar |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield |
| - 2 x SATA Data Cables | |
| Hardware Monitor | - CPU Temperature Sensing |
| - Chassis Temperature Sensing | |
| - CPU Fan Tachometer | |
| - Chassis Fan Tachometer | |
| - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) | |
| - CPU/Chassis Fan Multi-Speed Control | |
| - CASE OPEN detection | |
| - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore | |
| Form Factor | - Micro ATX Form Factor |
| - Solid Capacitor for CPU power | |
| OS |
Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit |
| *Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA. | |
| Certifications | FCC, CE, WHQL |
