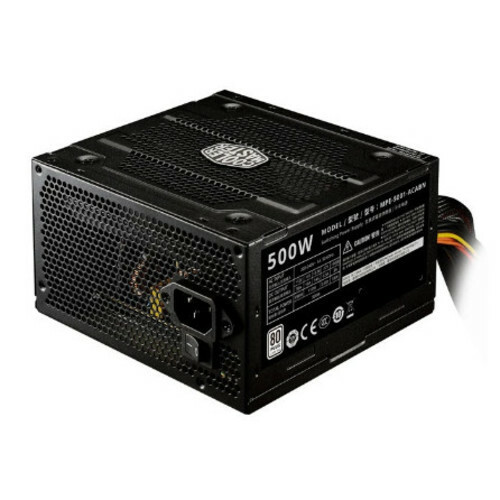

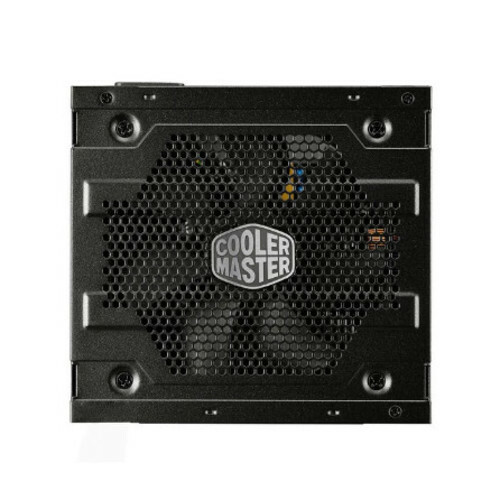

| - Cooler Master MWE 500 Watt 80 Plus Power Supply 500W 80 Plus 80+ |
| Tech Spec: |
| - Product Name MWE 500 |
| - Product Number MPE-5001-ACABN |
| - Type Intel Form Factor ATX 12V V2.41 |
| - PFC Active PFC (>0.9 typical) |
| - Operation Voltage 230V |
| - Input Voltage 200-240Vac |
| - Input Current 3.5A |
| - Input Frequency 50-60Hz |
| - Dimensions (LxBxH) 140 x 150 x 86 mm |
| - Fan Size 120mm |
| - Fan Bearing sleeve Bearing |
| - Fan Speed 725-1460 RPM |
| - Power Good Signal 100-500 ms |
| - Hold Up Time >14ms at 100% load |
| - Efficiency 85% @ Typical Load |
| - ErP 2013 Lot 6 Yes |
| - MTBF >100,000 Hours |
| - Operating Temperature 40C |
| - Protections OVP / OPP / OTP / SCP |
| - Regulatory CE, TUV, EAC, RCM, CCC |
| - Connectors MB 20+4 Pin 1 |
| - CPU 12V 4+4 Pin 1 |
| - SATA 6 |
| - 4 Pin Peripheral 3 |
| - FDD Cable 4 Pin 1 |
| - PCI-e 6+2 Pin 2 |
| 1 x 20+4-Pin ATX Motherboard |
| 1 x 4+4-Pin EPS CPU |
| 2 x 6+2-Pin PCIe |
| 6 x 15-Pin SATA |
| 3 x 4-Pin Peripheral / Molex |
| 1 x 4-Pin Floppy |
