| Maks. Memori | 32GB (Dual Channel Supported) |
| Display Output | D-Sub, DVI-D, HDMI |
| Lain-lain | ASRock Super Alloy |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| ASRock Live Update & APP Shop | |
| Supports Intel® Turbo Boost 2.0 Technology | |
| Supports Intel® Extreme Memory Profile (XMP) 2.0 | |
| Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics | |
| DirectX 12 | |
| HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only) | |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) |
| Supports Surge Protection | |
| ELNA Audio Caps | |
| Kesesuaian Memori | Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory |

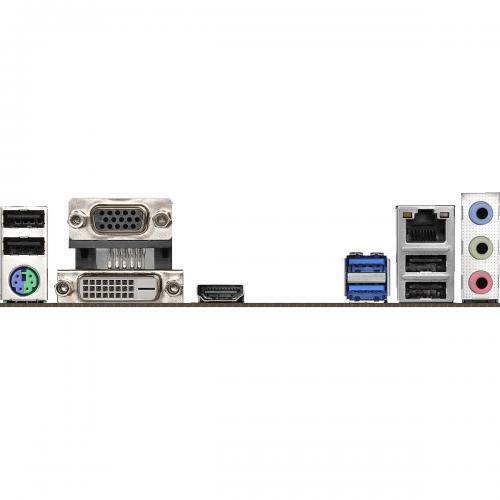

| External I/O | 1 x PS/2 Mouse/Keyboard Port |
| 1 x D-Sub Port | |
| 1 x DVI-D Port | |
| 1 x HDMI Port | |
| 4 x USB 2.0 Ports (Supports ESD Protection) | |
| 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) | |
| 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Expansion Slots | 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) |
| 2 x PCI Express 2.0 x1 Slots | |
| Internal I/O | 1 x Print Port Header |
| 1 x COM Port Header | |
| 1 x TPM Header | |
| 1 x Chassis Intrusion and Speaker Header | |
| 1 x CPU Fan Connector (4-pin) | |
| 2 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| 1 x 24 pin ATX Power Connector | |
| 1 x 8 pin 12V Power Connector | |
| 1 x Front Panel Audio Connector | |
| 2 x USB 2.0 Header (Supports 4 USB 2.0 ports) (Supports ESD Protection) | |
| 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection | |
| CPU Socket | LGA1151 |
| Kesesuaian Prosesor | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors |
| LAN | Giga PHY Intel® I219V |
| Gigabit LAN 10/100/1000 Mb/s | |
| Supports Wake-On-LAN | |
| Supports Lightning/ESD Protection | |
| Supports Energy Efficient Ethernet 802.3az | |
| Supports PXE | |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support |
| ACPI 6.0 Compliant wake up events | |
| SMBIOS 2.7 Support | |
| CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment | |
| Onboard VGA | Supports Intel® UHD Graphics |
| DIMM Sockets | 2 x DDR4 DIMM Slots |
| Form Factor | Micro ATX Form Factor |
| Serial ATA Controller | 4 x SATA3 6.0 Gb/s Connectors |
| 1 x M.2 Socket (M2_1) |
