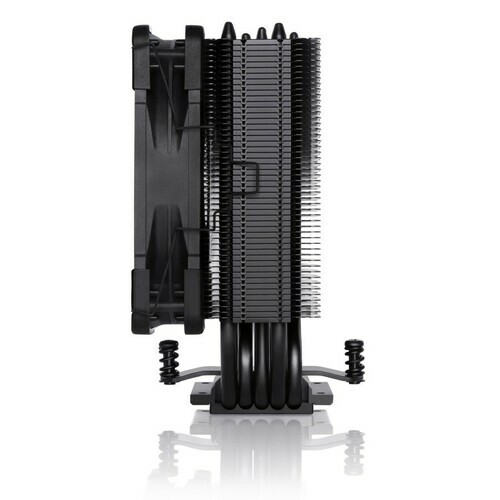

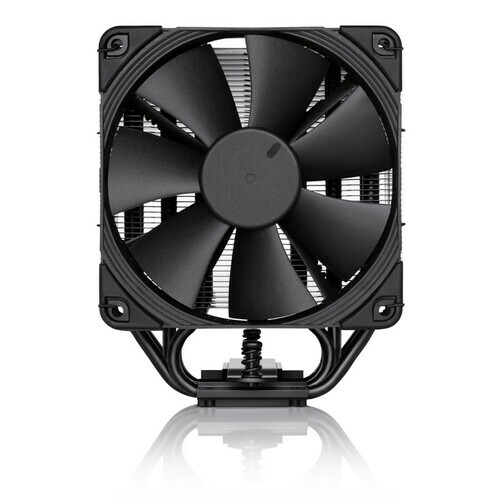

CPU Cooler Noctua NH-U12S Chroma Black - Tower Multi Socket Intel And AMD



Socket compatibility
Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4

Height (without fan) : 158 mm
Width (without fan) : 125 mm
Depth (without fan) : 45 mm
Weight (without fan) : 580 g
Height (with fan) : 158 mm
Width (with fan) : 125 mm
Depth (with fan) : 71 mm
Weight (with fan) : 755 g
Material : Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility : 120x120x25

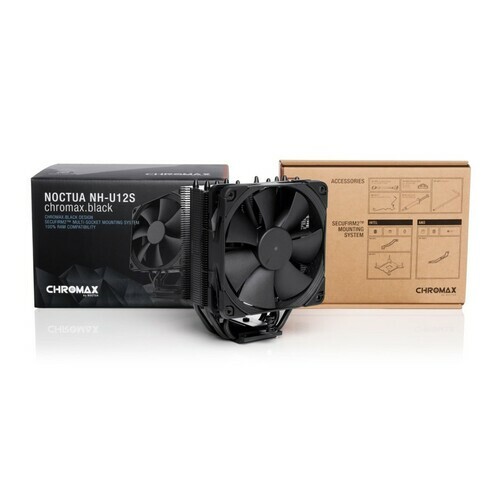

Scope of delivery :
-Black NH-U12S heatsink
-NF-F12 PWM chromax.black premium fan
-Low-Noise Adaptor (L.N.A.)
-NT-H1 high-grade thermal compound
-Black SecuFirm2™ Mounting Kit
-Black anti-vibration pads and fan-clips for second NF-F12
-Noctua Metal Case-Badge


FAN Specification
Model : Noctua NF-F12 PWM chromax.black
Bearing : SSO2
Max. rotational speed (+/- 10%) : 1500 RPM
Max. rotational speed with L.N.A. (+/- 10%) : 1200 RPM
Min. rotational speed (PWM, +/-20%) : 300 RPM
Max. airflow : 93,4 m³/h
Max. airflow with L.N.A. : 74,3 m³/h
Max. acoustical noise : 22,4 dB(A)
Max. acoustical noise with L.N.A. : 18,6 dB(A)
Voltage range : 12 V
MTTF> : 150.000 h
