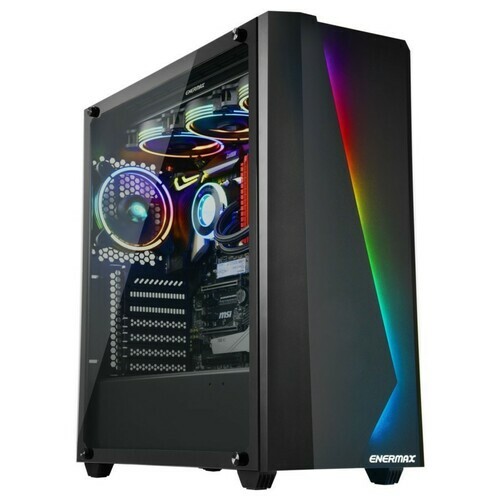

Simple and decent exterior design
Unique lightning-shaped RGB strip in the front panel creates a visually appealing look; the lighting of the strip can be easily controlled via a button on I/O (13 pre-set effects)

Addressable RGB lighting synchronization
Support synchronizable RGB Lighting via motherboards with header (3 pin assignment is 5V/D/G). Users can program preferred lighting effects via the motherboard software with 16.8 million color options

Support E-ATX motherboard

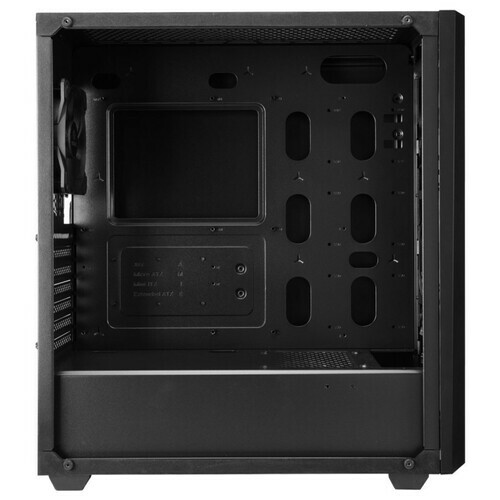

Spacious interior supports E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards

Movable HDD cage
Movable HDD cage can create extra space for longer PSU (max. 20cm) installation

Versatile water cooling options
Flexible cooling system configuration supports 3 x designated areas for liquid cooler installation

4mm panoramic tempered glass window
4mm full-view tempered glass side panel allows you to show off your rigs

PSU-Tunnel design (aka PSU shroud)
The design minimizes the cable clutter, which makes the system clean and neat, and helps improve the air circulation

Model Name ECA-MK50-BB-ARGB
Dimensions (D x W x H) 452 x 212 x 495 mm
Material SPCC, T=0.6mm
M/B Type E-ATX, ATX, Micro ATX, Mini ITX
I/O USB3.0 x 1, USB2.0 x 2, HD Audio, Lighting control
3.5'' Drive Bays 2
2.5'' Drive Bays 6 (2 x Converted from 3.5”HDD tray)
Expansion Slots 7
Fan Slots - Front 3 x 120mm
Fan Slots - Top 2 x 140mm or 3 x 120mm
Fan Slots - Rear 1 x 120mm (1 x 120mm fan pre-installed )
Fan Slots - Tunnel 1 x 120mm
Radiator Support - Front 360mm / 240mm
Radiator Support - Top 360mm / 280mm / 240mm
Radiator Support - Rear 120mm
PSU Support 180mm / 200mm (Moving HDD cage forward)
Clearance - VGA card 410mm
Clearance - CPU Cooler 160mm
