| Deskripsi : |
| - Projection Technology : RGB liquid crystal shutter projection system (3LCD) |
| Brightness : |
| - White Light Output (Normal/Eco) : 3,800 lm |
| - Colour Light Output : 3,800 lm |

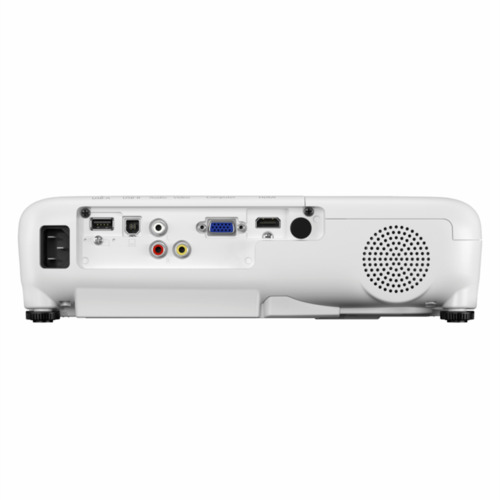

| Connectivity : |
| - USB Interface : |
| USB Type A : 1 (For Wireless LAN, Firmware Update, Copy OSD Settings) |
| USB Type B : 1 (For Firmware Update, Copy OSD Settings) |
| - Network : Wireless: Optional (ELPAP11) |
| - Analog Input : |
| Composite : 1 RCA |
| D-Sub 15pin : 1 |
| - Digital Input : HDMI : 1 (MHL not supported) |
| - Audio Input : 2 RCA : 1 |
| - Contrast Ratio : 16,000:1 |
| Screen Size (Projected Distance) : |
| - Standard Size : |
| Tele : 30” to 300” [1.07 to 10.95 m] |
| Wide : 30” to 300” [0.89 to 9.12 m] |
| Geometric Correction : |
| - Vertical/Horizontal Keystone : ±30° / ±30° (Auto Vertical Keystone only) |
| - Quick Corner : Yes |
| Specifications of Main Parts : |
| - LCD : |
| Native Resolution : XGA (1024 x 768) |
| Size : 0.55” (C2fine) |
| Lightsource : |
| Type : 210W UHE |
| Life (Normal / Eco) : 6,000 / 12,000 hours |
| - Aspect Ratio : 4:3 |
| - Projection Lens : |
| Type : Optical Zoom (Manual) / Focus (Manual) |
| F-Number : 1.49 – 1.72 |
| Focal Length : 16.90 – 20.28 mm |
| Zoom Ratio : 1 – 1.2 |
| Throw Ratio : 1.48 – 1.77 (Wide to Tele) |
