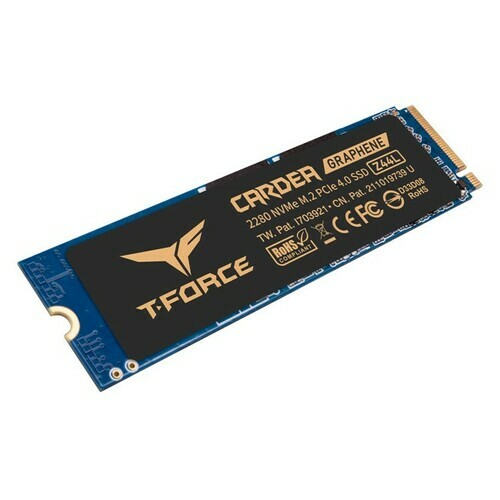

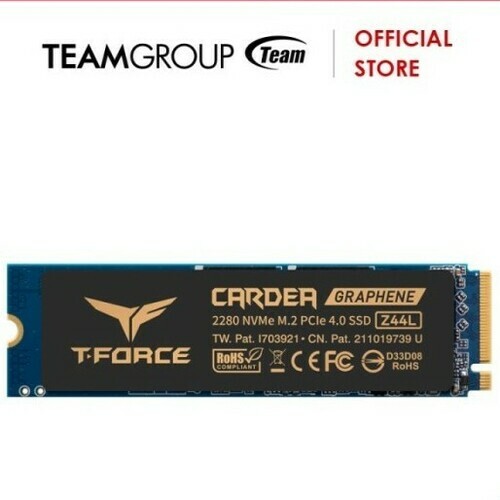

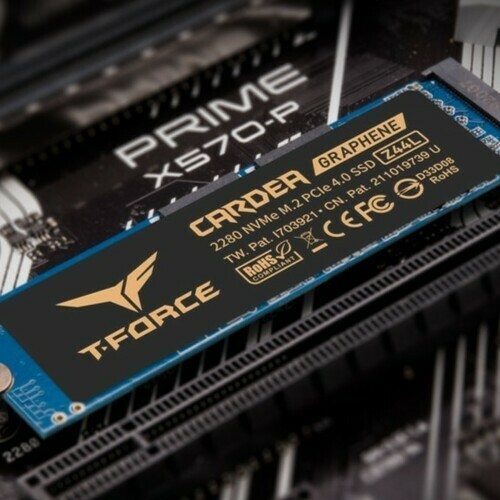

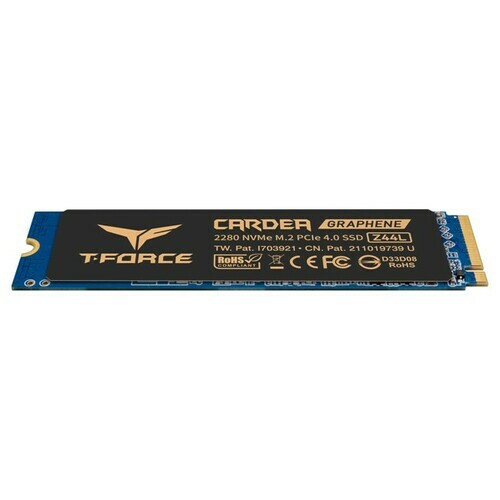

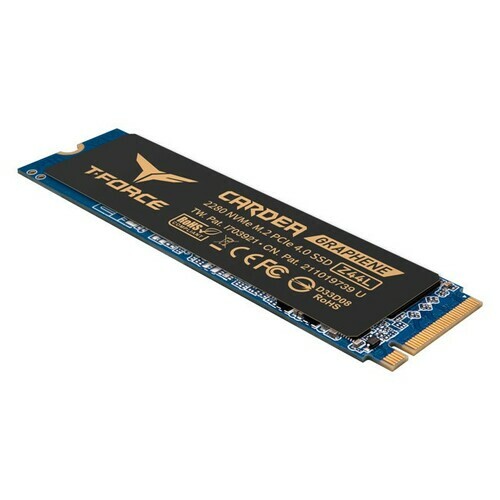

Model CARDEA Z44L
Interface PCIe Gen4x4 with NVMe 1.4
Capacity 250GB
Voltage DC +3.3V
Operation Temperature 0C  70C
Storage Temperature -40C 85C
DRAM Cache NO
Terabyte Written (TBW) 250GB – 150TBW
500GB - 300TBW
1TB - 600TBW

Model CARDEA Z44L
Interface PCIe Gen4x4 with NVMe 1.4
Capacity 250GB / 500GB / 1TB
Voltage DC +3.3V
Operation Temperature 0C ~ 70C
Storage Temperature -40vC  85C
DRAM Cache NO
Terabyte Written (TBW) 250GB – 150TBW
500GB - 300TBW
1TB - 600TBW

Performance Crystal Disk Mark
250GB Read/Write up to 3300/1400 MB/s
500GB Read/Write up to 3300/2400 MB/s
1TB Read/Write up to 3500/3000 MB/s[1] IOPS:
250GB Read/Write 132K/985K IOPS Max
500GB Read/Write 142K/357K IOPS Max
1TB Read/Write 263K/382K IOPS Max

Weight 7g (PCBA)
Dimensions 80.0(L) x 22.0(W) x 3.7(H) mm
Humidity RH 90% under 40C (operational)
Vibration 80Hz~2,000Hz/20G
Shock 1,500G/0.5ms
MTBF 3,000,000 hours
Operating System System Requirements:
Windows 10 / 8.1 / 8 / 7 / Vista
Linux 2.6.33 or later
Warranty 5-year limited warranty
